RF Car Key Signal Hacking with M5Stick CPlus 2 and CC1101

Table of Contents

• Attack Overview
• Hardware Requirements
• Firmware Installation
• Hardware Configuration
• Basic RF Attacks
• Advanced Jamming Techniques
• Understanding Rolling Codes
• Defense Strategies

Attack Overview

Car key RF attacks exploit the wireless communication between key fobs and vehicle receivers operating typically on 433MHz or 315MHz frequencies. While modern vehicles implement rolling code security, sophisticated attack techniques can still compromise these systems through signal jamming and capture methodologies [web:68].

Hardware Requirements

The M5Stick CPlus 2 provides an ideal platform for RF security research due to its compact form factor and powerful ESP32-S3 processor, making it perfect for red team engagements [web:64].

Why M5Stick CPlus 2?

The M5Stick CPlus 2 offers significant advantages for RF security operations:

• Portability: Compact design ideal for covert operations
• Display: Built-in LCD for real-time feedback
• Battery: Integrated power source for standalone operation
• Processing Power: ESP32-S3 handles complex RF operations

Firmware Installation

The Bruce firmware transforms the M5Stick into a comprehensive RF security testing platform [web:66].

M5Burner Setup

Download and configure the official M5Stack burning tool:

# Download M5Burner from official source:
# https://docs.m5stack.com/en/uiflow/m5burner/intro

# Installation steps:
# 1. Download and install M5Burner application
# 2. Connect M5Stick CPlus 2 via USB-C
# 3. Launch M5Burner application

Bruce Firmware Installation

Bruce firmware provides comprehensive RF capabilities including capture, replay, and jamming functions:

# Firmware installation process:
# 1. Select Hardware: M5Stick CPlus 2
# 2. Search firmware: "Bruce"
# 3. IMPORTANT: Choose CPlus 2 version (not CPlus 1)
# 4. Download and burn firmware
# 5. Wait for successful installation completion

The burning process typically takes 2-3 minutes. Once complete, the M5Stick will reboot with the Bruce interface.

Hardware Configuration

Proper CC1101 module connection is critical for RF functionality:

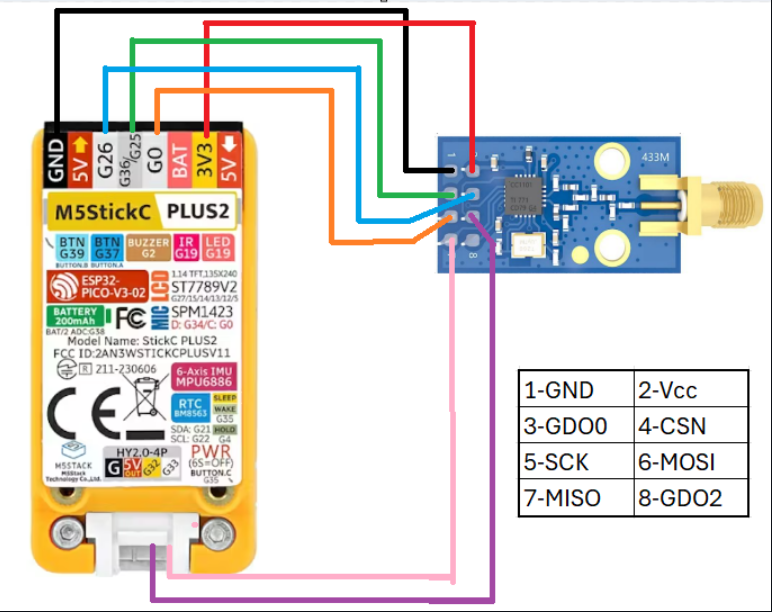

CC1101 Connection Diagram

# CC1101 to M5Stick CPlus 2 Wiring:
# VCC (CC1101) -> 3.3V (M5Stick)
# GND (CC1101) -> GND (M5Stick)
# SCK (CC1101) -> GPIO 13 (M5Stick)
# MISO (CC1101) -> GPIO 11 (M5Stick)
# MOSI (CC1101) -> GPIO 12 (M5Stick)
# CSN (CC1101) -> GPIO 10 (M5Stick)
# GDO0 (CC1101) -> GPIO 2 (M5Stick)
# GDO2 (CC1101) -> GPIO 35 (M5Stick)

Module Detection Verification

After wiring, verify successful CC1101 detection:

1. Boot M5Stick CPlus 2 with Bruce firmware
2. Navigate to RF section in main menu

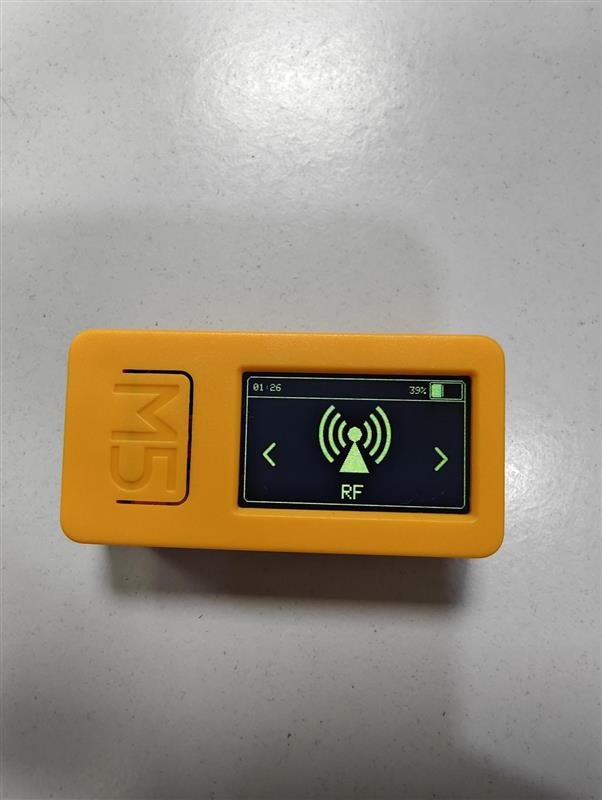

3. Access Config feature
4. Select RF Module option

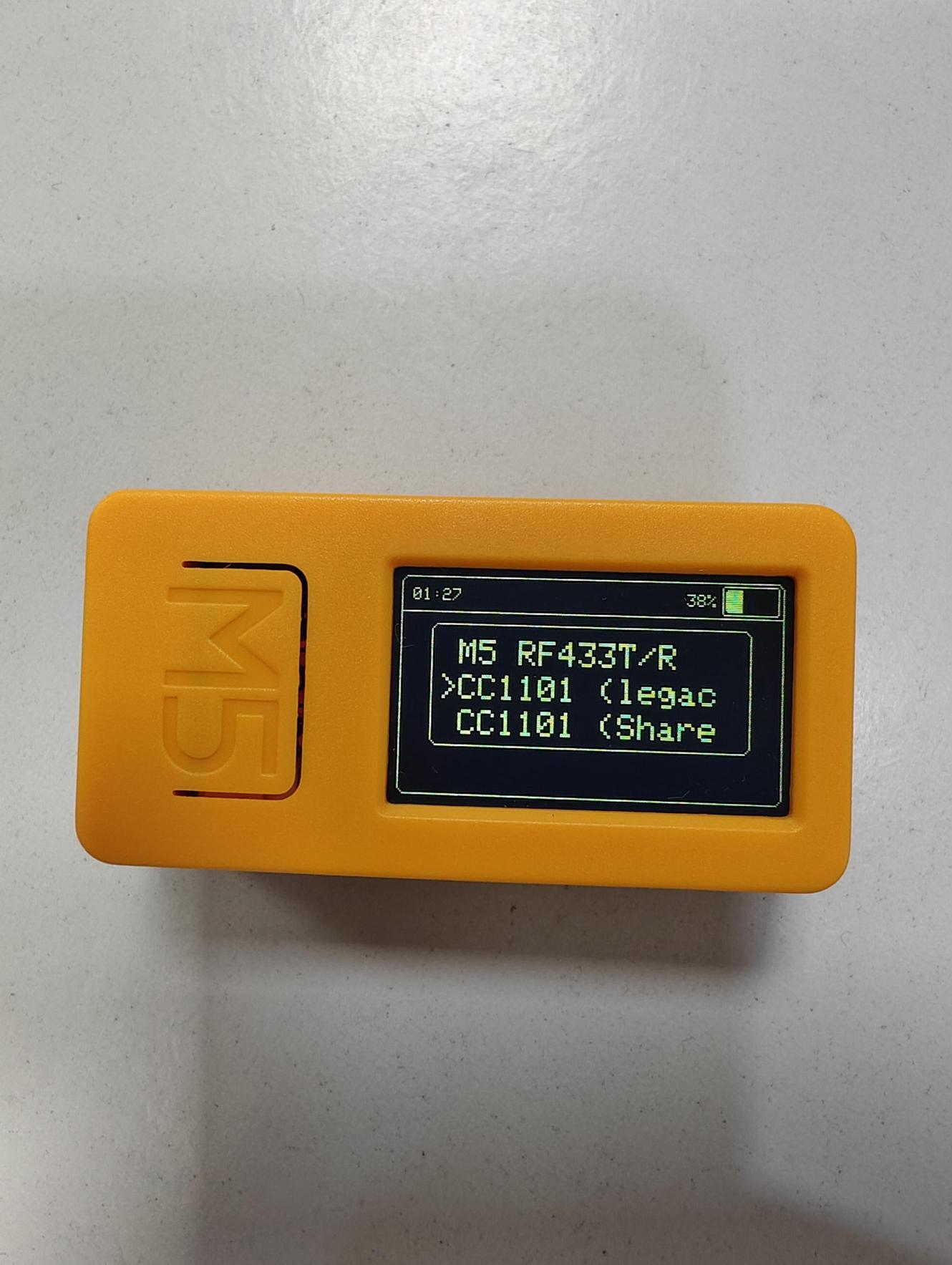

5. Choose CC1101 Legacy Module

# Successful detection indicators:
# - No error messages displayed
# - Module status shows "Connected"
# - Frequency range displays correctly
# - Signal strength meter appears active

Basic RF Attacks

Once hardware is configured, we can perform fundamental RF security tests [web:65].

RF Signal Scanning

Begin by scanning for active RF signals in the environment:

# Scanning procedure:
# 1. Main Menu -> RF -> Scan
# 2. Set frequency range (typically 433MHz for most car keys)
# 3. Activate scanning mode
# 4. Monitor for signal activity
# 5. Frequency adjustment available if needed

Basic Replay Attack

For older vehicles without rolling code protection, simple replay attacks can be effective:

# Replay attack process:
# 1. Position device near target vehicle
# 2. Initiate capture mode on M5Stick
# 3. Trigger victim's key fob (unlock/lock)
# 4. Capture and analyze signal
# 5. Execute replay when center button pressed
# 6. Options: Save, Replay, or Delete captured signal

The captured signal can be immediately replayed or saved for later use. However, this basic technique has significant limitations against modern security systems.

Understanding Rolling Codes

Modern vehicle security implements sophisticated protection mechanisms that prevent simple replay attacks [web:68].

Rolling Code Mechanics

# Rolling code security features:
# - Unique code for each transmission
# - Cryptographic seed values
# - Synchronized counters between key and car
# - Time-based validation windows
# - Anti-replay protection mechanisms

When a key fob button is pressed, the system generates a unique code that will never be used again. Even if an attacker captures this signal, replaying it will fail because the vehicle expects the next sequential code in the rolling sequence.

Advanced Jamming Techniques

Sophisticated attackers can bypass rolling code security through signal jamming and capture techniques.

Dual-System Attack Architecture

The advanced attack requires two coordinated RF systems:

• System 1: RF Jammer - Creates interference preventing signal from reaching vehicle
• System 2: RF Receiver - Cleanly captures the jammed signal for later replay

Attack Execution Flow

# Advanced jamming attack timeline:
# T+0s: Position systems near target vehicle
# T+1s: Activate RF jammer on target frequency
# T+2s: Victim attempts to unlock vehicle
# T+3s: Jammer creates interference for car receiver
# T+4s: Our clean receiver captures the signal
# T+5s: Vehicle fails to unlock (victim unaware)
# T+Later: Victim drives away, locks vehicle normally
# T+Much Later: Replay captured signal to unlock vehicle

Technical Implementation

The attack exploits the difference in signal reception quality:

# Signal interference mechanics:
# - Jammer creates garbage noise for vehicle receiver
# - Our receiver positioned for optimal signal capture
# - Vehicle fails to receive clean signal
# - We capture the unused rolling code
# - Code remains valid since vehicle never processed it

Why This Works

The fundamental vulnerability lies in the rolling code validation process:

1. Code Generation: Key fob generates next rolling code
2. Jamming: Our interference prevents car from receiving signal
3. Capture: We receive clean signal while car receives garbage
4. No Synchronization: Car never processes code, so it remains valid
5. Later Replay: Our captured code is still "next in sequence"

Defense Strategies

Understanding these attacks enables better defensive strategies for both manufacturers and users.

Manufacturer-Level Defenses

User-Level Protections

# Personal security measures:
# - Be aware of surroundings when using key fobs
# - Look for suspicious individuals with electronic devices
# - Use physical key backup when in high-risk areas
# - Consider Faraday pouches for key storage
# - Report unusual vehicle behavior immediately

Detection Indicators

• Key Fob Malfunctions: Sudden range reduction or inconsistent operation
• Multiple Attempts Required: Needing several presses to unlock
• Suspicious Individuals: People loitering with electronic devices
• Unusual RF Activity: Detected by RF monitoring equipment

Real-World Implications

These RF attack techniques have serious implications for vehicle security and theft prevention.

Attack Sophistication Levels

• Script Kiddie: Basic replay attacks on old systems
• Intermediate: Rolling code understanding and simple jamming
• Advanced: Coordinated dual-system attacks with precise timing
• Expert: Custom hardware and sophisticated signal processing

Future Research Directions

RF security research continues evolving as both attack and defense techniques advance:

• Machine Learning: AI-powered signal analysis and pattern recognition
• Quantum Cryptography: Next-generation key exchange mechanisms
• Mesh Networking: Vehicle-to-vehicle authentication systems
• Behavioral Analysis: User pattern recognition for anomaly detection

Conclusion

RF car key security represents a complex battlefield between attackers and defenders. While rolling codes provide significant security improvements over static systems, sophisticated jamming attacks can still compromise modern vehicles under specific conditions.

The M5Stick CPlus 2 and CC1101 combination demonstrates how accessible hardware can perform advanced RF security research. Understanding these vulnerabilities is crucial for both security professionals and automotive manufacturers working to improve vehicle security.

As vehicle connectivity increases with IoT integration and autonomous features, RF security becomes even more critical. The techniques demonstrated here represent just the beginning of automotive cybersecurity challenges facing the industry.
